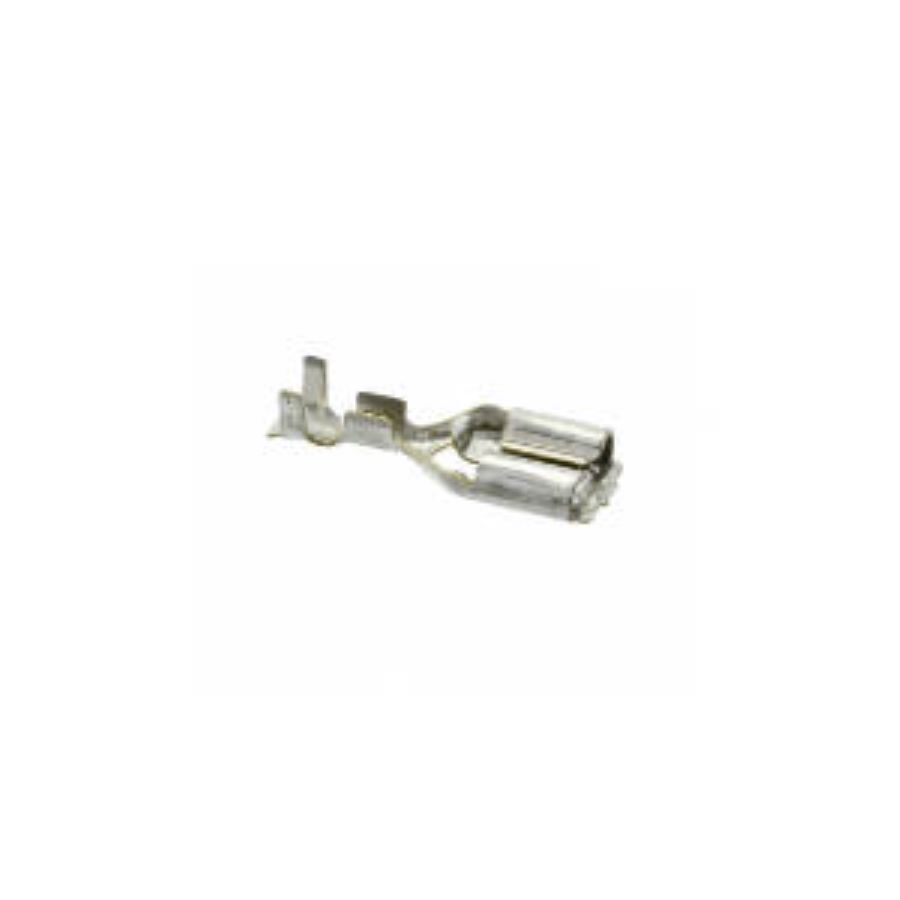

179973-1
Manufacturer:
TE Connectivity
Mfr.Part #:
179973-1
Datasheet:
Description:
Terminals Free Hanging 18 AWG Female
| Parameter | Value |
|---|---|
| Length | 21.2 mm |
| Termination | Receptacle |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 3 mm |
| Wire/Cable Gauge | 18 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.0988 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 6.2992 mm |
| Tab Thickness | 812.8 µm |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 2534
Distributors
pcbx
pcbxUnit Price$0.19572
Ext.Price$0.19572
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19572 | $0.19572 |
| 10 | $0.09786 | $0.97860 |
| 50 | $0.07528 | $3.76400 |
| 100 | $0.05791 | $5.79100 |
| 500 | $0.05160 | $25.80000 |
| 1000 | $0.04598 | $45.98000 |
| 3000 | $0.04094 | $122.82000 |
| 5000 | $0.03646 | $182.30000 |
| 10000 | $0.03195 | $319.50000 |
| 30000 | $0.03029 | $908.70000 |
| 50000 | $0.02871 | $1435.50000 |
| 100000 | $0.02683 | $2683.00000 |
